40r / Min Rotating Speed RTP Pipe Making Machine Steel Tape Interlock Machine

Name: 40r Min Rotating Speed RTP Pipe Making Machine Steel Tape Interlock Machine
Brand: Herrman
Price: 1 USD

Brand Name : Herrman

Model Number : 420/1+1

Certification : CE SGS CQC ISO

Place of Origin : China

MOQ : 1 Set

Price : By Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 10 Sets Per Year

Delivery Time : 5 Months

Packaging Details : Plastic Films Packing

Steel Tape O.D. : Max. 2500mm

Steel Tape Width : 30-80mm

Steel Tape Thickness : 0.5-2.0mm

Linear Speed : 1.6m/min

Rotating Speed : 40r/min

Pipe Diameter : Max. 430mm

Usage : Steel Tape Inter Locking

Final Product : Hose With Steel Tape

Contact Now

Hose Machine Pipe Wrapping Machine Steel Tape Inter Locking Machine

1. Usage

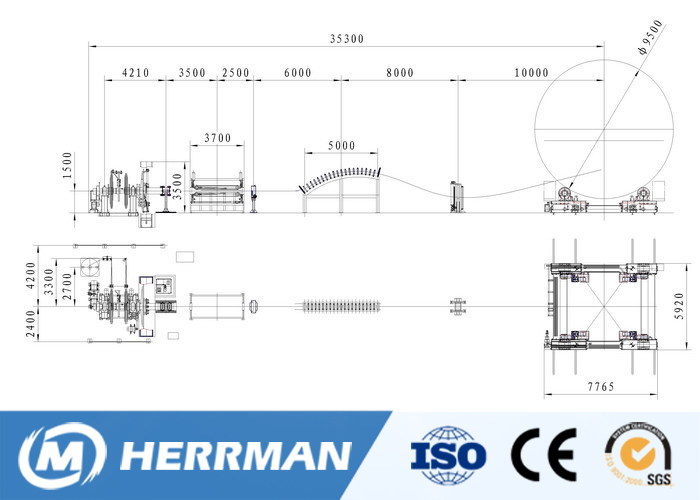

The line is mainly used for produce inner liner of deep-sea oil pipeline, which can be borne the strong pressure inside and outside. It consisit of stainless steel tape inter locking machine, caterpillar, rollers stand and electrical control system.

2. Main Characteristics

- It is adopting 6 pairs pressure rollers for pressing and forming.

- It is adopting 6 pairs pressure rollers for winding forming.

- The machine has two plates, one for paying-off tapes, and another for storing tapes. The mutual transformation of the two tapes function improves production efficiency greatly.

3. Main Technical Data

Specification		420/1+1
Qty of tape plates		2 plates
Stainless steel tape O.D. (mm)		2500
Steel tape size	Width (mm)	30-80
	Thickness (mm)	0.5-2.0
Max. locking O.D. (mm)		430
Max. Locking rotating speed (r/min)		40
Motor power (kw)		45
Haul-off device	Hual-off type	3 belts caterpillar
	Max. hual-off force (T)	3T
	Max. linear speed (m/min)	1.6
	Hual-off motor power (kw)	5.5
