Extruding Line Fiber Optic Cable Production Line Tight Buffer Fiber Extruding machine

Brand Name : Herrman

Model Number : Tight buffer fiber

Certification : ISO , SGS , CE , CQC

Place of Origin : China

MOQ : 1 Set

Price : By Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 30 sets per month

Delivery Time : within four month after receipt of down payment

Packaging Details : To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.

Structure speed : 300m/min

Working speed : 250m/min

Dia. of optical fiber : 0.25 ~ 0.40mm

Take up : 400mm

Color : Customerized

Motor : Siemens

Contact Now

Extruding Line Fiber Optic Cable Production Line Tight Buffer Fiber Extruder

1. Application

The line is used to extrude tight buffer fiber which the diameter is 0.6mm and 0.9mm. The extruding material can be LSZH , PVC.

2. Technical Specification

Structure speed 400m/min
Working speed 300m/min
Dia. of optical fiber 0.25-0.40mm
Tight buffer fiber dia. 0.6mm,0.9mm
No. of optical fiber 2 spools
Optical fiber reel size 236x108mmx160;236x236mmx160
Take up reel 400

3. Line configuration

3.1 Dual optic-fiber pay-off frame 1

3.2 Preheating and dry device 1

3.3 SJ30 extruder 1

3.4 Hot water trough 4m

3.5 Hot water tank 1

3.6 Cooling water trough 8m

3.7 Blow dryer device 1

3.7 Diameter detecting system 1

3.9 Single wheel capstan with pressing belt 1

3.10 Take-up tension controller 1

3.11 Ф400 Take-up frame 1

3.12 Electric control system 1

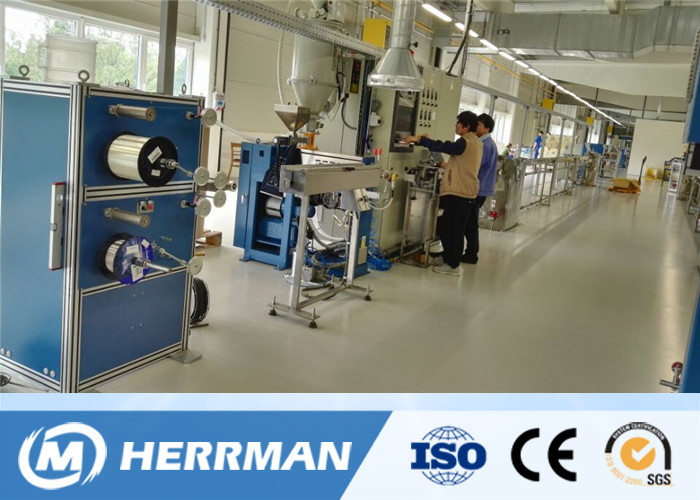

4. Picture for reference

Extruding Line Fiber Optic Cable Production Line Tight Buffer Fiber Extruding machine
