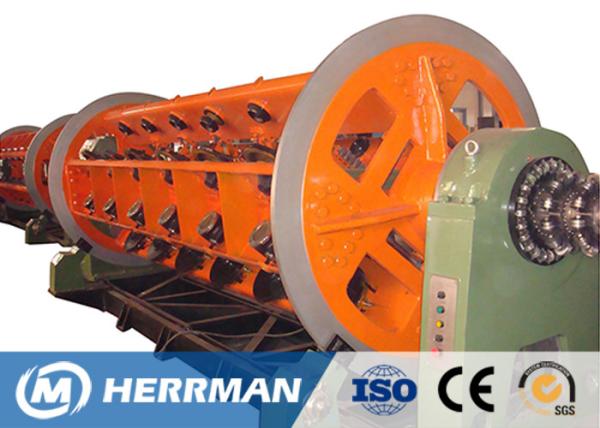

Rigid Frame Structure Wire And Cable Stranding Machine Milliken Conductor

Product Categories

Wire Cable Machine [109]
Cable Stranding Machine [144]
Fiber Optic Cable Making Machine [45]
Cable Extrusion Machine [23]
Cable Armouring Machine [30]
Wire Drawing Machine [29]
Cable Testing Machine [25]
Wire Cable Accessories [53]
RTP Pipe Making Machine [39]
Automatic Bandsaw Machine [12]
Warehouse Loading Equipment [30]
Pipe Jacking Machine [5]

Anhui Herrman Machinery Co.,ltd

Contact Now

Rigid Frame Structure Wire And Cable Stranding Machine Milliken Conductor

Name: Rigid Frame Structure Wire And Cable Stranding Machine Milliken Conductor
Brand: Herrman
Price: 1 USD

Rigid Frame Structure Wire And Cable Stranding Machine Milliken Conductor Manufactures

Brand Name : Herrman

Model Number : 400 , 500 , 630 , 710 , 800

Certification : ISO , CE , CQC , CE

Place of Origin : China

MOQ : 1 Set

Price : By Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 50 Set per year

Delivery Time : 3 months after receipt of down payment

Packaging Details : To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.

Transmission : Ground shaft or separate motor

Application : Copper, Aluminum , Milliken conductor

Reel size : 400 , 500 , 630 , 710 , 800

Motor : Siemens

Bearing : NSK or China famous brand

Color : Customerized

Contact Now

Rigid Frame Structure Wire And Cable Stranding Machine Milliken Conductor

1. Application:

It is mainly used for stranding and compacting of copper , aluminum conductors of round and sector shapes , as well as pre-twisting compacting of Milliken conductors , which has reached modern advanced level in the world.

The machine uses Siemens PLC to control and manage the whole line , and adopts full digital DC speed regulator to control the starting and running of the DC motors . The electrical control system is of advanced technology , ensure easy and reliable operation.

2. Technical specification

Bobbin size : 400mm , 500mm , 630mm , 710mm , 800mm

Bobbin quantity of single cage : From 6 bobbin to 48 bobbin

Clamping : Pneumatic type clamping , Motor clamping , Manual Clamping

Tension control : Hysteresis tension control , Mechanical tension control

Mechanical tension control with feedback , Pneumatic tension control

Bobbin loading : Side bottom hydraulic loading , Side bottom electrical loading , Side loading

Bobbin size		Max. rotation speed (rpm)						Wire dia.(mm)
500		6B	12B	18B	24B	30B	36B	Aluminum	Copper
		273	225	198	173	151	120	1.8-5.0
		242	199	175	153	133	96		1.2-5.0
630	Normal	218	189	166	146	130	103	1.8-5.0
	Normal	190	167	147	129	115	82		1.2-5.0
	High speed	310	290	250	215	185	135	1.8-5.0
	High speed	210	195	170	145	128	108		1.2-5.0

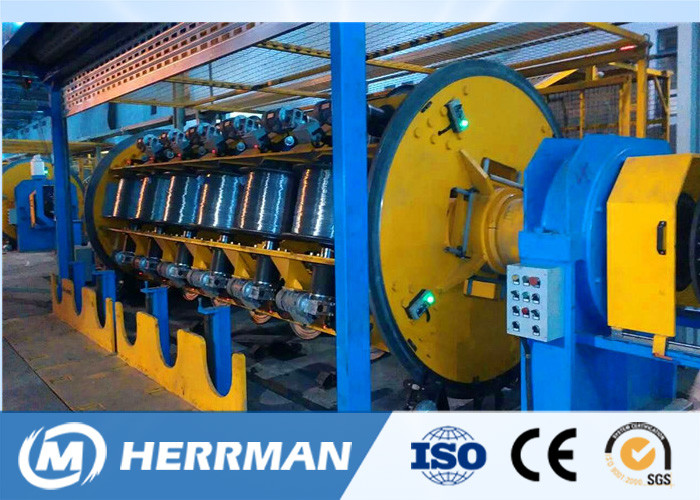

3. Picture for reference
