Servo Control Wire Cable Machine Ball Screw Driven Pultrusion Equipment

Product Categories

Anhui Herrman Machinery Co.,ltd

Contact Now

Name: Servo Control Wire Cable Machine Ball Screw Driven Pultrusion Equipment
Brand: HERRMAN
Price: 1 USD

Brand Name : HERRMAN

Model Number : NLY

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 20 working days

Packaging Details : export packing

Certification : CE

Price : 1 set per one month

NAME : Servo Control Ball Screw driven Pultrusion Equipment

Application : Drawing

model : NLY

Clamp Systrem Model : Puneumatic Or Hydraulic

Contact Now

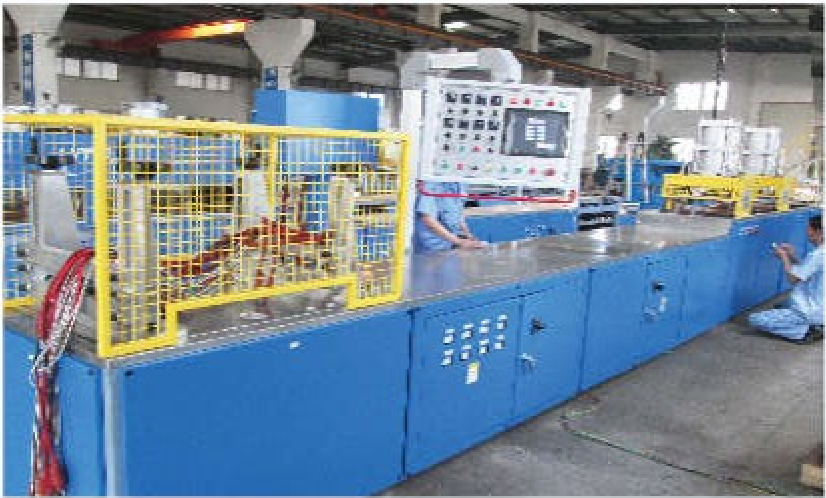

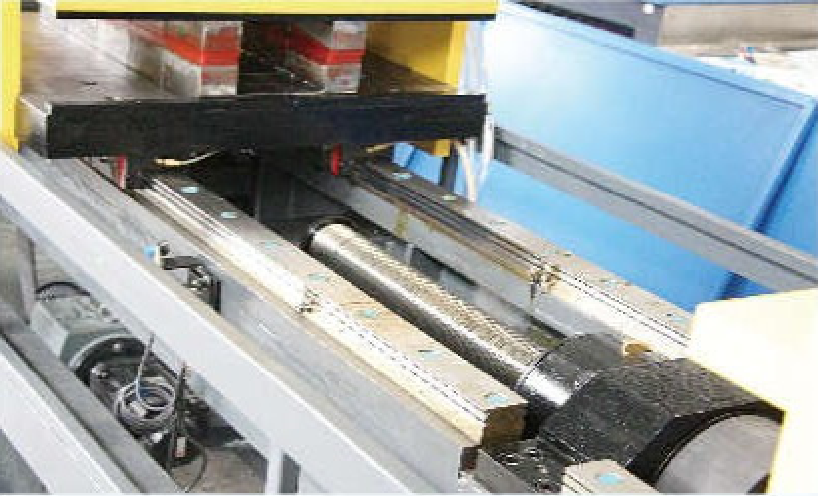

Servo Control Ball Screw driven Pultrusion Equipment

Servo Pultrusion Mode	NLY-8T	NLY-12T	NLY-25T
Max.Pulling Force (Kgf)≥	8.000	12.000	20.000
Max.Clamping Force (Kgf)≥	8.000	12.000	20.000
Pulling speed range (m/min)	0.1-1.8	0.1-1.5	0.1-1.2
Max.Clamping space (mm*mm)	500*200	1000*250	1200*300
System Motor Power (kw)	5.5*2	7.5*2	11.0*2
Temperature range for die heating (℃)	0-270℃
Precision ℃	±1℃
Exterior Machine size(L/W/H)(m)	9.51.01.9	9.51.51.9	10.01.81.8
Machine Control	PLC&Servo Motor
Clamp Systrem Model	Puneumatic Or Hydraulic

Servo Control Wire Cable Machine Ball Screw Driven Pultrusion Equipment
