Aerospace Normal Copper Wire Twisting Machine , Single 0.08 - 0.45mm Wire Making Machine

Name: Aerospace Normal Copper Wire Twisting Machine Single 008 045mm Wire Making Machine
Brand: Herrman
Price: 1 USD

Aerospace Normal Copper Wire Twisting Machine , Single 0.08 - 0.45mm Wire Making Machine Manufactures

Brand Name : Herrman

Model Number : 500mm - 2000mm

Certification : CE, UL, GS, SGS, TUV, ISO

Place of Origin : China

MOQ : 1 SET

Price : By Negotiation

Payment Terms : L/C, D/A, D/P, T/T or By Negotiation

Supply Ability : 10 SETS PER MONTH

Delivery Time : 110 DAYS

Packaging Details : EXPORT PACKING

Product Name : Automatic Copper Wire Cable Twisting Buncher Machine

Application : ulti strand copper wire, aluminum wire, tinned copper conduct, Data Cable, Lan Cable

Max Twist : 6000tpm

Line Speed : 240m/min

Max speed : 3000rpm

Lubrication : oil lubricating

Contact Now

Aerospace Normal Copper Wire Twist Machine Single 0.08 - 0.45mm Automatic Wire Twister

Application

It is suitable for the computer traverse, earphone cable, electronic wire, telephone cable, automotive wire, network cable and PVC wire copper to twist.

Technical parameter

It has been developed to produce very accurate strands with very small sections for the electronic industry. Simultaneously produce two different strand sections, on equal or different reels.One motor drive two shafts can be more environmental and power. With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.

Patent No.:201320522156.7

Specifications:

Model	250D	300D	500D	650D
Twisting usage	Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires).
Single wire dia(mm)	0.03-0.18	0.05-0.28	0.08-0.45	0.15-1.04
Stranding section area (mm²)	0.0049-0.30	0.0137-0.45	0.05-2.0	0.35-6.0
Pitch(mm)	0.8-10.8(24zones)	1.6-21.6(24zones)	6.3-52.3(24zones)	11.6-100(34zones)
Direction of lay	Free to right or left
Take up bobbin size(mm)	25030185	30030185	50056375 500127375	60056475 600127475
Max rotating speed	3500(7000twist)	3500(7000twist)	3000(6000twist)	2000(4000twist)
Power	3.7KW	5.5KW	7.5KW	11KW
Tension control method	Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	0.3kgf	0.6kgf	1.2kgf	5kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable
Dimension(mm)	2400L1750W1100H	2400L1750W1100H	2800L2250w1500H	3500L2850W1800H

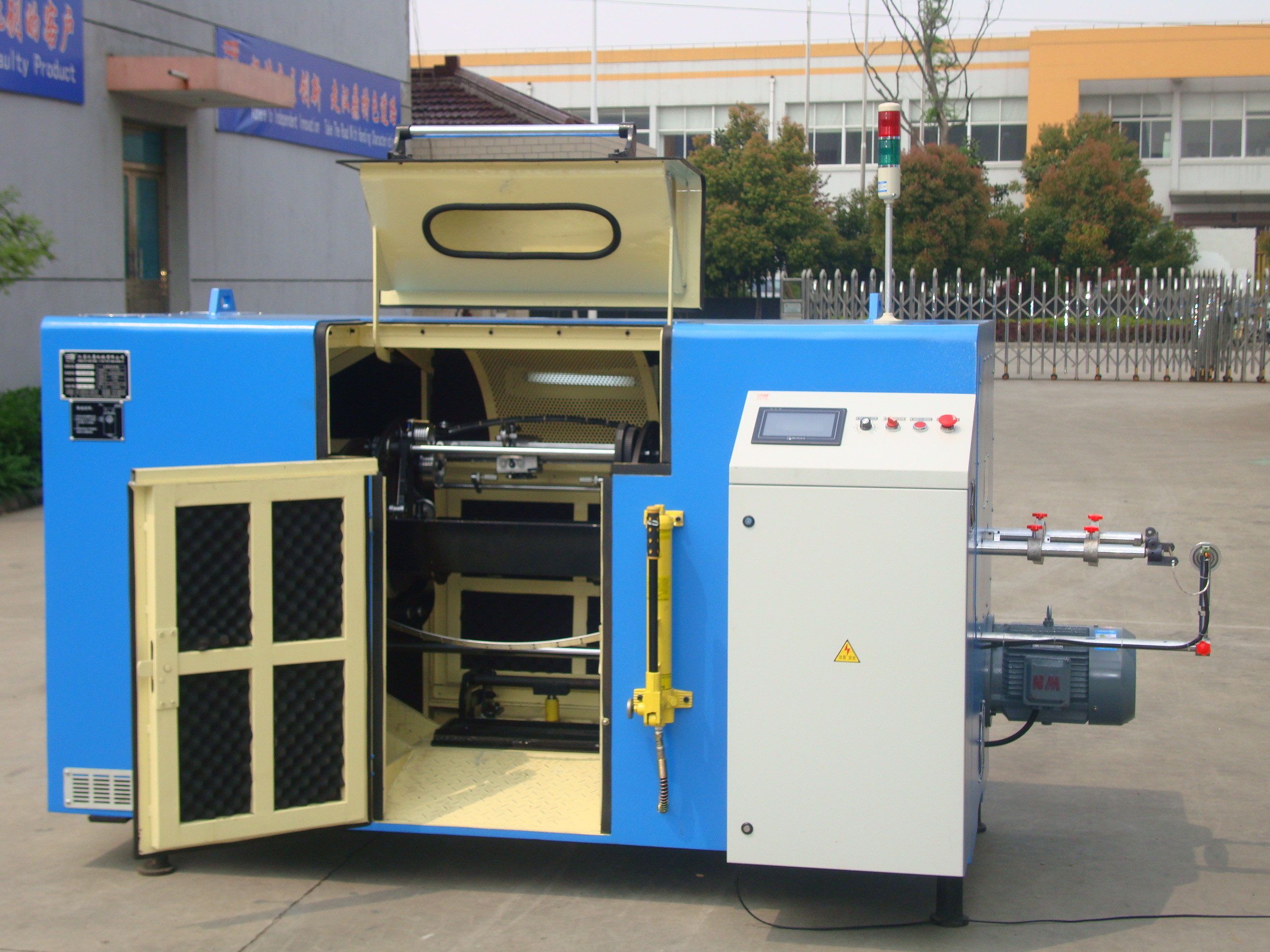

Machine Photo

Aerospace Normal Copper Wire Twisting Machine , Single 0.08 - 0.45mm Wire Making Machine
