Energy Efficient Cable Twisting Machine Three Core Quadruple Twister

Name: Energy Efficient Cable Twisting Machine Three Core Quadruple Twister
Brand: Herrman
Price: 1 USD

Energy Efficient Cable Twisting Machine Three Core Quadruple Twister Manufactures

Brand Name : Herrman

Model Number : 500 , 630

Certification : ISO , CQC , CE , SGS

Place of Origin : China

MOQ : 1 Set

Price : By Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 Sets per month

Delivery Time : 1 month after receipt of down payment

Packaging Details : To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.

Application : Lan cable CAT5E CAT6A CAT7 CAT8

Tension : Active slide rail type

Inverter : Siemens

Rotate Speed : Max. 1800 rpm

Pay off : Zero Tension Flyer

Core dia. : 0.8 - 1.7 mm

Contact Now

Lan Cable Wire And Cable Twisting Machine Three Core Quadruple Twister

1. Technical Specification

Model	500	630
rotate speed	max.1800rpm	max.1800rpm
cores diam	0.8-1.7mm	0.8-1.7mm
finished OD	1.6-3.4mm	1.6-3.4mm
pitch range	5-50mm	5-50mm
back twist ratio	0-100%	0-100%
bobbin	500 pay off,500take up	500 pay off,630take up
tension type	active slide rail type	active slide rail type
tension range	0.6-3kg	0.6-3kg
pitch tolerance	±2%	±2%

2. Quadruple Pitch

Quadruple pitches finish in one time , 2 times efficiency than double twist machine

3. Application

Lan cable CAT5E CAT6A CAT7 CAT8

4. Features

Zero tension flyer pay off with back twisting pay off at the same time , more stable performance for cable

All - in - one key set on PLC , adjustable back twisting ratio

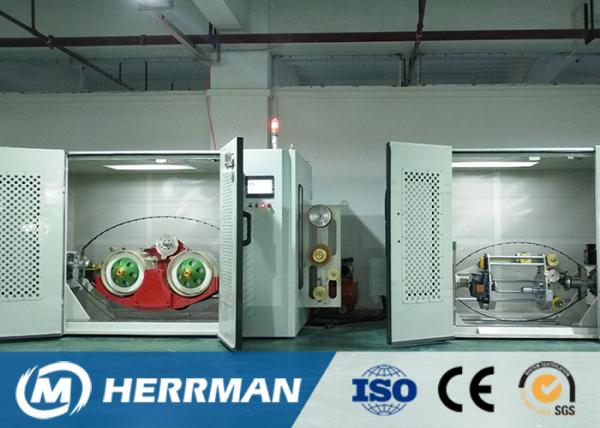

5. Picture for reference

Energy Efficient Cable Twisting Machine Three Core Quadruple Twister
