S / Z Optional Direction Cable Twisting Machine / single twist machine Cantilever Frame Type

Name: S Z Optional Direction Cable Twisting Machine single twist machine Cantilever Frame Type
Brand: Herrman
Price: 1 USD

S / Z Optional Direction Cable Twisting Machine / single twist machine Cantilever Frame Type Manufactures

Brand Name : Herrman

Model Number : 630 , 800 , 1000 , 1250

Certification : ISO , CQC ,CE , SGS

Place of Origin : China

MOQ : 1 Set

Price : By Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 Sets per month

Delivery Time : 3 months after receipt of down payment

Packaging Details : To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.

Application : Data cables , Lan cables , High frequency cables , power cables

Structure : Cantilever frame type

Motor : Siemens or customer choice

Color : Customer choice

Twist direction : S / Z optional

Control system : PLC auto control

Contact Now

Single Twister Wire And Cable Twisting Machine Cantilever Frame Type

1. Application

Data cables

Lan cables

High efficiency cables

Power Cables

2. Technical Parameter

Model	630	800	1000	1250
Rotate speed	850rpm	600rpm	500rpm	400rpm
Bobbin dia.	630mm	800mm	1000mm	1250mm
Finished OD	3-10mm	3-15mm	3-20mm	10-25mm
Pitch range	25-180mm	30-200mm	40-250mm	40-300mm
Twist direction	S/Z optional
Take up type	Shaft lever type
Control system	PLC auto control system

3. Features

High speed rotate speed, 2 times efficiency to traditional framing one

Less wire through pulleys , less bending and damage on wire materials

Bobbin traversing system , adjustable traversing pitch

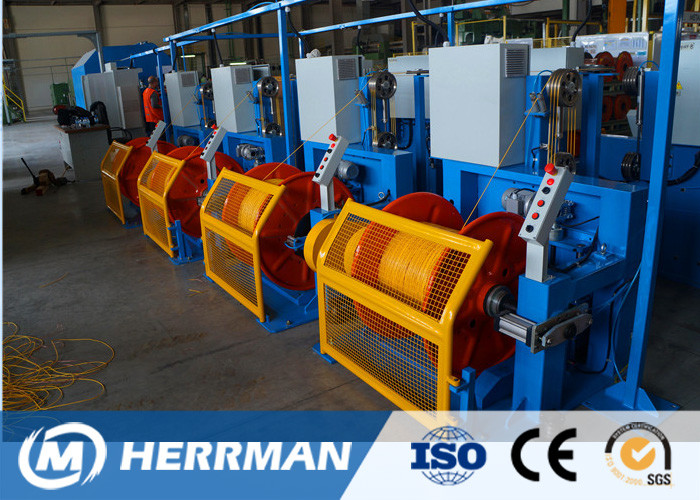

4. Picture for reference

S / Z Optional Direction Cable Twisting Machine / single twist machine Cantilever Frame Type
