High Potency Cable Twisting Machine Single Twister Shaft Lever Take Up Type NSK Bearing

Name: High Potency Cable Twisting Machine Single Twister Shaft Lever Take Up Type NSK Bearing
Brand: Herrman
Price: 1 USD

High Potency Cable Twisting Machine Single Twister Shaft Lever Take Up Type NSK Bearing Manufactures

Brand Name : Herrman

Model Number : 630 , 800 , 1000 , 1250

Certification : ISO , CQC ,CE , SGS

Place of Origin : China

MOQ : 1 Set

Price : By Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 Sets per month

Delivery Time : 3 months after receipt of down payment

Packaging Details : To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.

Application : Data cables , Lan cables , High frequency cables , power cables

Structure : Cantilever type

Bearing : NSK or China famous brand

Color : Decided by user

Twist direction : S / Z optional

Take up type : Shaft lever type

Contact Now

Wire And Cable Twisting Machine Cantilever Frame Structure Data Single Twister

1. Application

Data cables

Lan cables

High efficiency cables

Power Cables

It's suitable for power wire, CAT 5 and ultra CAT 5 and 6 data cable, communication cable and other special high speed twist, and also taping etc..

2. Technical Parameter

Model	630	800	1000	1250
Rotate speed	850rpm	600rpm	500rpm	400rpm
Bobbin dia.	630mm	800mm	1000mm	1250mm
Finished OD	3-10mm	3-15mm	3-20mm	10-25mm
Pitch range	25-180mm	30-200mm	40-250mm	40-300mm
Twist direction	S/Z optional
Take up type	Shaft lever type
Control system	PLC auto control system

3. Less Bending

Three wire through pulleys , less bending and damage on twisted cable , ensure good electrical performance.

4. Auto Oiling Device

With setting oiling period and time time on PLC. Oiling device will also auto process, makes machine more durable.

5. Bobbin Traversing Take up

Fixed traversing wheel, movable bobbin for traversing and take up, pitch setting according to finished OD, compact ranking without pressure.

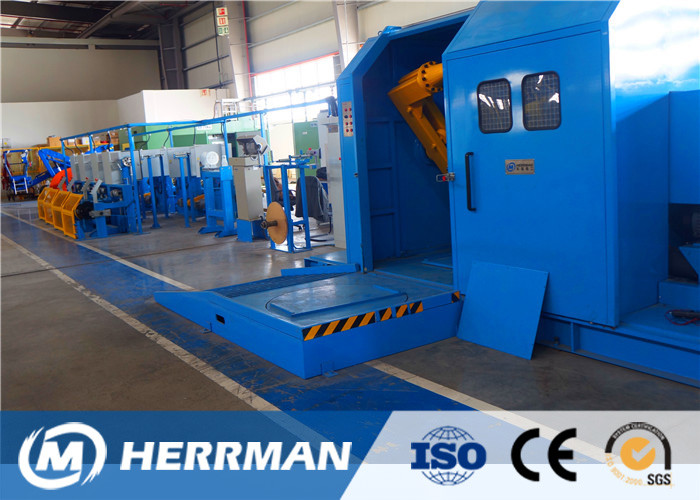

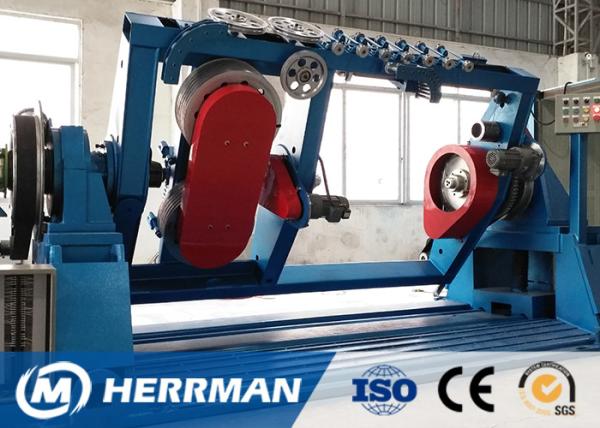

6. Picture for reference

High Potency Cable Twisting Machine Single Twister Shaft Lever Take Up Type NSK Bearing
