Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable

Name: Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
Brand: Herrman
Price: 1 USD

Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable Manufactures

Brand Name : Herrman

Model Number : 400, 500, 630, 800

Certification : CE, UL, GS, SGS, TUV, ISO

Place of Origin : China

MOQ : 1 SET

Price : By Negotiation

Payment Terms : L/C, D/A, D/P, T/T or By Negotiation

Supply Ability : 10 SETS PER MONTH

Delivery Time : 126 DAYS

Packaging Details : EXPORT PACKING

Product Name : Planetary Type Cable Stranding Machine for OPGW and Fibre Optic Submarine Cable

Usage : stranding Al-clad steel cable, OPGW and Fibre Optic Submarine Cable, steel cored Al stranded wire, and bare Cu and Al wire.

Wire Diameter : 1.0mm – 5.0mm

Back Twist : 100% back-twist

Drive Method : Independent Drive

Bobbin Tension : Uniform pay-off wire tension.

Contact Now

Planetary Type Cable Stranding Machine for OPGW and Fibre Optic Submarine Cable

Application:

This machine is mainly used in stranding Al-clad steel cable, OPGW and Fibre Optic Submarine Cable, steel cored Al stranded wire, and bare Cu and Al wire.

Specification:

Able to produce cables or strands in one or multi-pass

The rotating structure is supported on bearings for reels up to Ø 800 mm; the rollers is supported on GESADUR rollers

Machine able to work in twist, total back twist or variable back twist

Reels loading/unloading from the top or side loaders

Mechanical pintles equipped with safety locking system

Wire/strand break detector for each payoff

Tension control for each and every bobbin with individual load cells and controlled bobbin drive or bobbin brake control systems

Main Technical Data

Bobbin Size (mm)	Max Rotation speed(m/min)						Wire Diameter(mm)
	Max Rotation speed(m/min)						Solid Conductor (AAC/ACSR)		Multi wire conductor	Al-Clad Steel wire	Optical fiber cell	Steel rope
	6B	8B	12B	16B	18B	24B	Copper	Al/Alloy	Multi wire conductor	Al-Clad Steel wire	Optical fiber cell	Steel rope
400	130	125	120		105	90	1.0-5.0	1.5-5.0	1.2-5.0
500	110	100	100		90	76	1.0-5.0	1.5-5.0	1.2-5.0
630	90	85	80	75	72	63	1.2-5.0	1.5-5.0	1.2-5.0	1.2-5.0	1.5-5.0
800	60		50		45							2.0-15

Machine Drawing

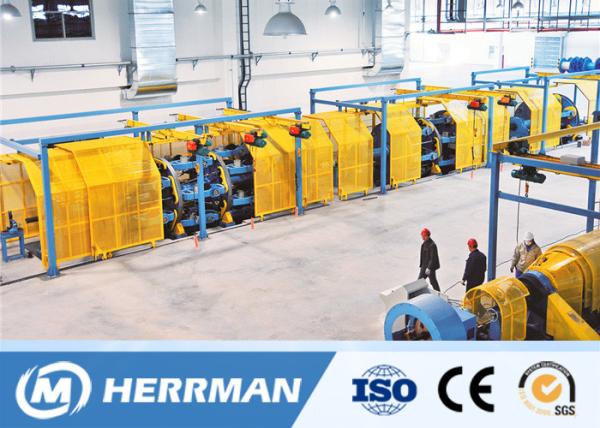

Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
