Cable Making Machine 800r/min Rotating Speed For 630 Bobbin Tubular Stranding Machine

Brand Name : Herrman

Model Number : 630, 500, 400, 200

Certification : CE, ISO, SGS, CQC

Place of Origin : China

MOQ : 1 Line

Price : By Negotiation

Payment Terms : T/T, L/C, D/A, OA, D/P

Supply Ability : 60 Sets Per Year

Delivery Time : 120 days

Packaging Details : Plastic Films

Single Wire Diameter : 1.3~5.0mm

Rotating Speed : 500, 720, 900, 120r/min

Motor Power : 11, 22, 37, 45KW

Bobbin Size : 200~630mm

Usage : Conductor Stranding

Final Product : Conductor

Contact Now

Wire Cable Machine Cable Stranding Machine Tubular Stranding Machine

1. Applications

The machine is used for stranding the copper conductor, aluminium conductor, steel rope and control cable etc.

2. Main Features

- Bobbin is compacted by disc springs and released by pneumatic device.

- Wire-break and emergent stops provided for all the line

- The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable in running.

- The tubular body is in a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.

3. Main Technical Specifications

Type 200/1+6 400/1+6 500/1+6 630/1+6
200/1+12 400/1+12 500/1+12 630/1+12
200/1+6+12 400/1+6+12 500/1+6+12 630/1+6+12
Single conductor dia. 0.2~1.5mm(Cu) 1.0~2.5mm(Al)
0.2~0.8mm(Steel)		 1.0~3.5mm(Cu) 1.5~4.0mm(Al)
0.6~3.0mm(Steel)		 1.3~5.0mm(Cu) 1.8~5.0mm(Al)
1.7~3.5mm(Steel)		 1.3~5.0mm(Cu) 1.8~5.0mm(Al)
1.7~3.5mm(Steel)
Max. rotating speed 1200r/min 900r/min 720r/min 800r/min
Main motor(AC) 11KW 22KW 37KW 45KW
Bobbin in cage PN200 PN400 PN500 PN630

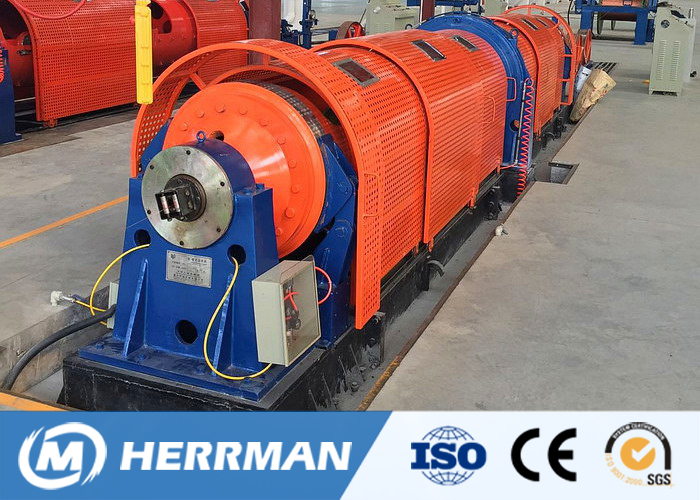

4. Photo

Cable Making Machine 800r/min Rotating Speed For 630 Bobbin Tubular Stranding Machine
